Friday, 28 May 2010

Example program of using BinaryToInteger.DLL

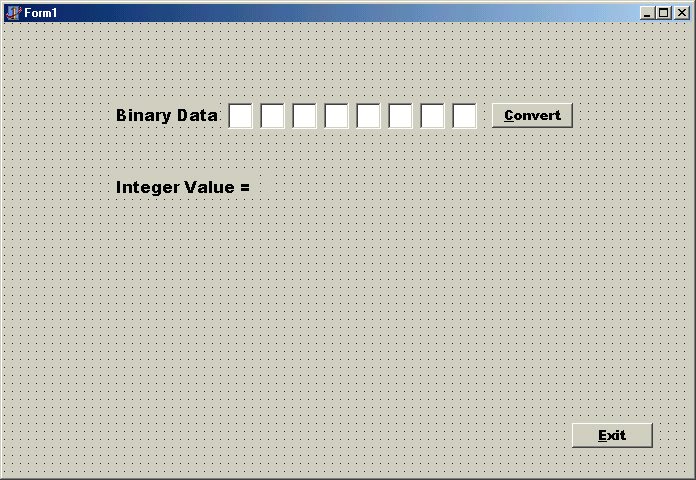

In this example, we are going to create a program that can convert an eight binary data into an integer value using BinaryToInteger.DLL. Before we start, you have to create a user interface like this picture.

Every edit box holds a bit of binary data. So there is a byte binary data (8 bits) that will be converted into an integer value. A binary data holds ‘0’ or ‘1’, so we need to limit the input of each edit box. And the code will be :

procedure TForm1.bit8KeyPress(Sender: TObject; var Key: Char);
begin
  if not (key in ['0','1',#8,#13]) then
    key:=#0
      else
        bit7.SetFocus;
end;

To use BinaryToInteger.DLL, you must declare the function after {$R *.DFM}

{$R *.DFM}
function BinToInt(S : String): integer; stdcall; external 'BinaryToInteger.dll';

Don forget, you must place your BinaryToInteger.DLL in the same folder with this project, or you can place this DLL file in the directory : c:\windows\system.

The code of OnClick even of ConvertButton :

procedure TForm1.ConvertButtonClick(Sender: TObject);
var
  BinaryData : string;
begin
  BinaryData := bit8.Text + bit7.Text + bit6.Text + bit5.Text +
  b it4.Text + bit3.Text + bit2.Text + bit1.Text;
  IntegerValue.Caption := IntToStr(BinToInt(BinaryData));
end;

You can download the complete code of this example program here.
